Сrane rail pad RAY PAD®

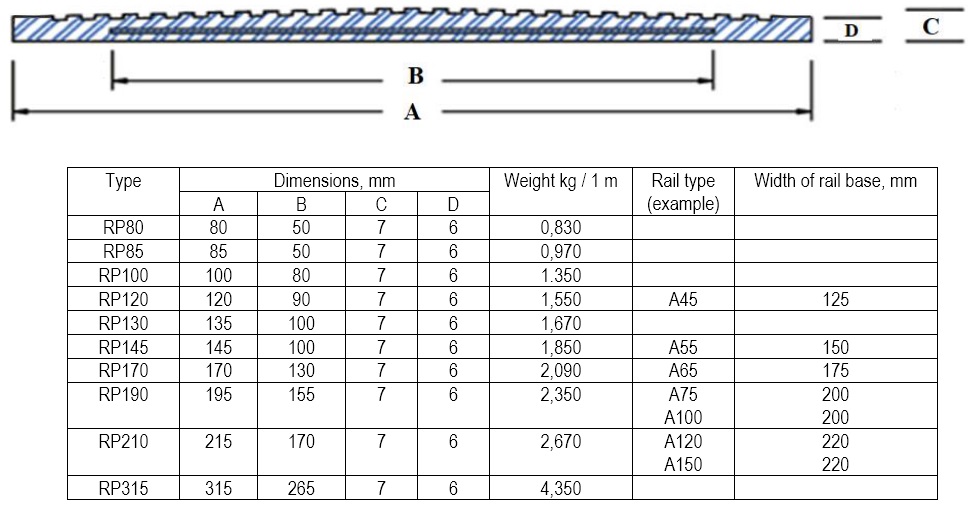

Rail pad is produced of different widths depending on the type of the rail it’s applied. Standard pad length is identical to standard length of rails and is 12m.

You can download catalog in PDF

Technical information:

• Shore hardness - 75±5
• Maximumtensile strength - 17,7 N/mm²
• Elongation - 255% (200% after aging)
• Operational temperature - -30+110 °C
• Vibration reduction - 45-50%
• Noise reduction (dbA) - 12%
• Constant deflection - <5% (<20% after aging)

Fundamental properties:

• Reduces noise and constructivevibratory action
• Absorbs shocks, compensates contact between rail and base, ground and structure
• Rail pad RP guarantees firm adherence due to wavy surface
• Rail pad is highly resistant towards water, oils, ozone, greasing substances and corrosion
• Rail pad distributes load from a wheel on broad flat surface reducing pressure that can occur on spots.
• Rail pad is reinforced with a metal plate from inside. It increase resistance to crushing and broadening
• Rail pad reduces frequency or sometimes even necessity of crane rail or track maintenance
• Rail pad protects crane mechanism extending frame, axis and wheels operation period

INSTALLATION INSTRUCTIONS:

First and utmost the rail pad should conform to chosen rails. Rail pad can be used in and outdoors. Top surface of the rail should be free of oils, thick and slippery materials. They can cause rail pad damage. The pad should be placed on bearing surface gapless wavy surface up. Pads should be placed in full compliance with lower rail edges to cover top parts all over.
