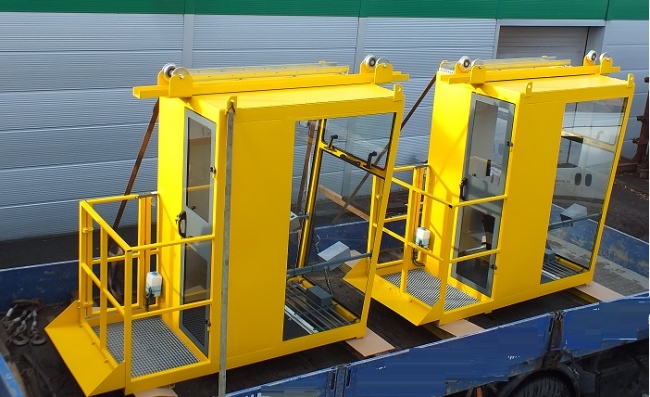

Small crane cabin KS-M
Fastening and movement of the cabin on an I-beam using rollers in the upper part.
Dimensions:
width 1060 mm
height 2200 mm
top depth 2420 mm
Metal construction with insulated insulated walls, filled with non-flammable insulating material.
Electrical installation is distributed using cables with high fire resistance, halogens-free.
Coating with high-quality anti-corrosion paint. Color classification: 1028 RAL
Entrance area, which is a one-piece construction with a cabin.
Options:
- Folding swivel chair 180 degrees
- Safety glass triplex on 3 sides
- Survey bottom glass with protection
- Glazed entrance door in the back of the cabin
- The floor is covered with non-slip dielectric rubber
- Electric wiper
- Window washer
- Electric heating
- Ventilation
- Efficient lighting
- First aid kit
- Fire extinguisher
Fastening and entrance tunnel from above cabins, are intended for the tunnel 1450х1490 mm in size.
Dimensions:
width 1450 mm
height 2180 mm
top depth 1800 mm
Metal construction with insulated insulated walls, filled with non-flammable insulating material.
Electrical installation is distributed using cables with high fire resistance, halogens-free.
Coating with high-quality anti-corrosion paint. Color classification: 1028 RAL
Special mounting system for the size of the tunnel.
Options:
- Safety glass triplex on 3 sides
- Survey bottom glass with protection
- Cable Tray System for Tunneling Cables
- The floor is covered with non-slip dielectric rubber
- Electric wiper
- Window washer
- Electric heating
- Ventilation
- Efficient lighting
- First aid kit
- Fire extinguisher
Old model to replace: New set model:
