Model RD-10

You can fill the questionnaire and we will find for you the necessary components

Material:

Case                         Zing-galvanized steel S355, powder painting
                                  Case RAL                      7012
                                  Roller fastening           RAL 1021
                                  Can be produce of stainless or acid-resistent steel
Rollers                      Hurdened galvanized steel or polyamide
Bearing                    Spherical ball bearing
Roller axis                Steel bushings, galvanized
Bolt joint                   Metric system
Seals                         Rubber EPDM

End cap                    PVC

Technical specifications:

Maximum load                          20 kg
Maximum travel speed            50 m/ min
Operating temperature            Standart -30oC and above. By order -40oC and above or -50oC and above. Other desings.

Minimum beam dimension    80

Please, notice,

RM International Group Sp. z o.o. reserves the right to introduce modifications into desing of any element.



View:

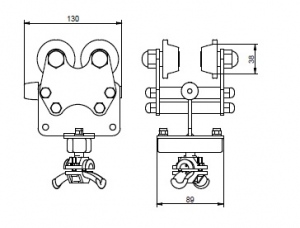

5001.10.1000 Cable trolley

  • Type CT-RD10-130-38
  • Dimensions: B-89 mm
                                 L-130 mm
  • Roller - polyamide
  • Completion of hoops by order
  • Weight (kg/szt) - 1,310
wozek CT-RD10-130-38 rysunek
+ More information

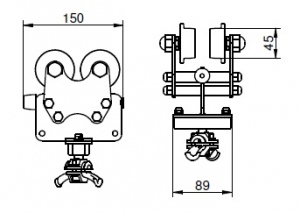

5002.10.1500 Cable trolley

  • Type CT-RD10-150-45
  • Dimensions: B-89 mm
                                 L-150 mm
  • Roller - hurdened galvanize steel
  • Completion of hoops by order
  • Weight (kg/szt) - 2,650
wozek CT-RD10-150-45 rysunek
+ More information

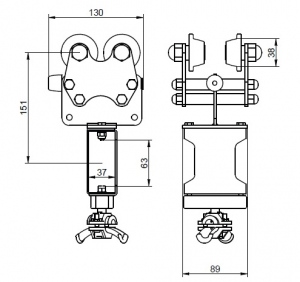

5001.11.1000 Towing trolley

  • Type CTT-RD10-130-38
  • Dimensions: B-89 mm
                                 L-130 mm
  • Roller - polyamide
  • Completion of hoops by order
  • Weight (kg/szt) - 1,620
wozek CTT-RD10-130-38 rysunek
+ More information

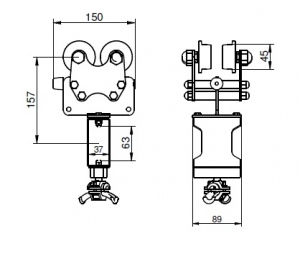

5002.11.1500 Towing trolley

  • Type CTT-RD10-150-45
  • Dimensions: B-89 mm
                                 L-150 mm
  • Roller - hurdened galvanized steel
  • Completion of hoops by order
  • Weight (kg/szt) - 3,100
wozek CTT-RD10-150-45 rysunek
+ More information

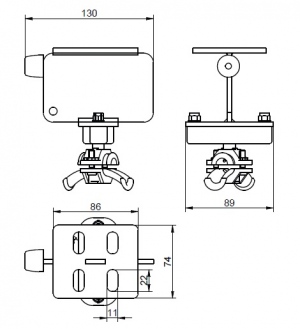

5001.12.0000 Terminal clip

  • Type CTE-RD10-130-00
  • Dimensions: B-89 mm
                                 L-130 mm
  • Completion of hoops by order
  • Weight (kg/szt) - 1,100
Zacisk koncowy CTE-RD10-130-00 rysunek
+ More information

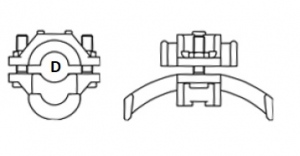

100905 Hoop of round cable WEK

  • Type:               WEK-2
  • Diameter:     10-16 mm
  • Material:        polyamide
  • Weight (kg/pcs) - 0,032
Obejma elementow okraglych WEK rysunek
+ More information
100906 Hoop of round cable WEK

  • Type:               WEK-3
  • Diameter:     17-25 mm
  • Material:        polyamide
  • Weight (kg/pcs) - 0,058
Obejma elementow okraglych WEK rysunek
+ More information
100907 Hoop of round cable WEK

  • Type:               WEK-4
  • Diameter:     26-36 mm
  • Material:        polyamide
  • Weight (kg/pcs) - 0,085
Obejma elementow okraglych WEK rysunek
