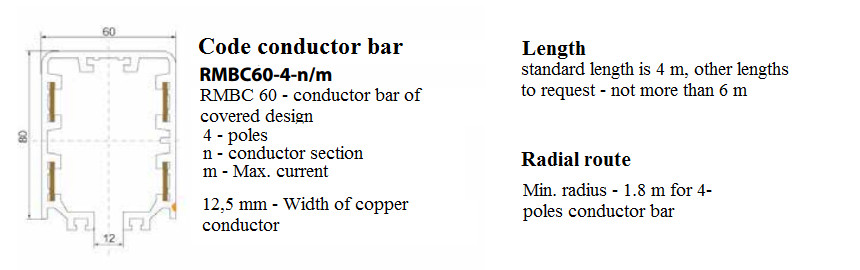

Enclosed conductor system - Type 60
You can fill the questionnaire and we will find for you the necessary components
View:
300050 RMBC60-4-10/50
- Number of poles - 4
- Conductor section - 10 mm2
- Max. current - 50 А
- Voltage drop - 1,656 Ω/km
- Weight - 2,37 kg
300080 RMBC60-4-15/80
- Number of poles - 4
- Conductor section - 15 mm2
- Max. current - 80 А
- Voltage drop - 1,193 Ω/km
- Weight - 2,49 kg
300100 RMBC60-4-20/100
- Number of poles - 4
- Conductor section - 20 mm2
- Max. current - 100 А
- Voltage drop - 1,011 Ω/km
- Weight - 2,63 kg
300120 RMBC60-4-25/120
- Number of poles - 4
- Conductor section - 25 mm2
- Max. current - 120 А
- Voltage drop - 0,761 Ω/km
- Weight - 2,75 kg
300140 RMBC60-4-35/140
- Number of poles - 4
- Conductor section - 35 mm2
- Max. current - 140 А
- Voltage drop - 0,542 Ω/km
- Weight - 3,12 kg
Specification
- Kable for connect - 4G2,5
Standard length 0,8m - other lengths to request
+ More information
Specification
- Kable for connect - 4G4
Standard length 0,8m - other lengths to request
+ More information
Specification
- Kable for connect - 8G4
Standard length 0,8m - other lengths to request
+ More information
Specification
- Kable for connect - 8G6
Standard length 0,8m - other lengths to request
+ More information
