- Model FL-40

- Model FL-40

You can fill the questionnaire and we will find for you the necessary components

to fill in on the website

download and fill in

Material

Case                                Zinc-galvanized steel S355, Powder painting
  Case RAL 7012
  Roller fastening RAL 1021
  Saddle RAL 5010
  Can be produced of stainless or acid-resistant steel
Rollers Extrahigh tensile steel
Bearing Spherical ball bearing
Roller axis                           Zinc-galvanized steel
Bolt joint Metric system

Seals

 Rubber EPDM
End cap         PCV
Saddle Zinc-galvanized steel



 Technical specifications

Maximum load 75 kg
Travel speed 90 m/min
Operating temperature           From -30 ° С and above. Possibly from -40 ° C and below
Min. beam dimension 100



  Please, notice,

RM International Group Sp. O.o. reserves the right to introduce modifications into design of any element.

View:

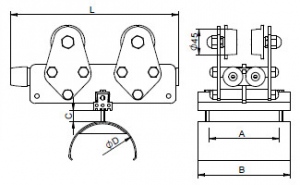

4017.40.55.2000 Cable trolley
4017.40.55.2000 Cable trolley
  • Type-CT-FL40-300x165x120-45
  • Dimensions:  A - 125 mm
                        B - 165 mm
                        C - 55 mm
                        D - 120 mm
                        L - 300 mm
  • Weight (kg/pcs) - 4,24
40-1
+ More information
4018.40.50.2000 Cable trolley
4018.40.50.2000 Cable trolley
  • Type-CT-FL40-300x205x160-45
  • Dimensions:  A - 165 mm
                        B - 205 mm
                        C - 45 mm
                        D - 160 mm
                        L - 300 mm
  • Weight (kg/pcs) - 4,7
40-1
+ More information
4019.40.45.2000 Cable trolley
4019.40.45.2000 Cable trolley
  • Type-CT-FL40-300x230x200-45
  • Dimensions:  A - 190 mm
                        B - 230 mm
                        C - 45 mm
                        D - 200 mm
                        L - 300 mm
  • Weight (kg/pcs) - 6,52
40-1
+ More information

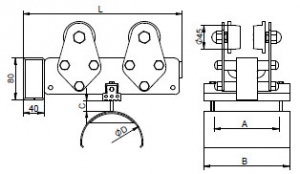

4017.41.55.2000 Towing trolley
4017.41.55.2000 Towing trolley
  • Type-CTT-FL40-300x165x120-45
  • Dimensions:  A - 125 mm
                        B - 165 mm
                        C - 55 mm
                        D - 120 mm
                        L - 300 mm
  • Weight (kg/pcs) - 4,72
41-1
+ More information
4018.41.50.2000 Towing trolley
4018.41.50.2000 Towing trolley
  • Type-CTT-FL40-300x205x160-45
  • Dimensions:  A - 165 mm
                        B - 205 mm
                        C - 50 mm
                        D - 160 mm
                        L - 300 mm
  • Weight (kg/pcs) - 5,18
41-1
+ More information
4019.41.45.2000 Towing trolley
4019.41.45.2000 Towing trolley
  • Type-CTT-FL40-300x230x200-45
  • Dimensions:  A - 190 mm
                        B - 230 mm
                        C - 45 mm
                        D - 200 mm
                        L - 300 mm
  • Weight (kg/pcs) - 6,8
41-1
+ More information

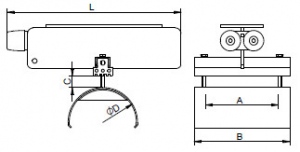

4017.42.55.0000 Terminal clip
4017.42.55.0000 Terminal clip
  • Type-CTE-FL40-300x165x120-00
  • Dimensions:  A - 125 mm
                        B - 165 mm
                        C - 55 mm
                        D - 120 mm
                        L - 300 mm
  • Weight (kg/pcs) - 1,87
42-1
+ More information
4018.42.50.0000 Terminal clip
4018.42.50.0000 Terminal clip
  • Type-CTE-FL40-300x205x160-00
  • Dimensions:  A - 165 mm
                        B - 205 mm
                        C - 50 mm
                        D - 160 mm
                        L - 300 mm
  • Weight (kg/pcs) - 2,38
42-1
+ More information
4019.42.45.0000 Terminal clip
4019.42.45.0000 Terminal clip
  • Type-CTE-FL40-300x230x200-00
  • Dimensions:  A - 190 mm
                        B - 230 mm
                        C - 45 mm
                        D - 200 mm
                        L - 300 mm
  • Weight (kg/pcs) - 3,6
42-1
+ More information
