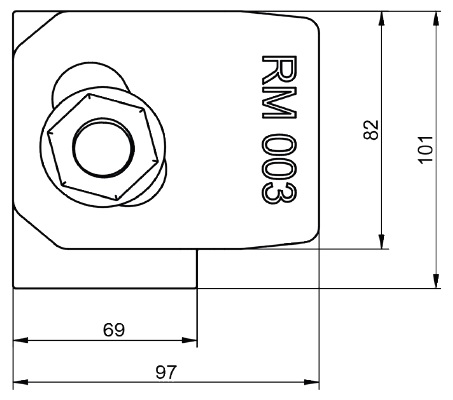

Weldable rail clip RM 003

TECHNICAL DATA:

Maximum side load 200 kN
Lateral adjustment 9 mm
Bolt M20 cl 8,8
Fastening torque 225 Nm
Steel grade St52-3

RM 003 Fastening system
The RM 003 fastening system for guiding rails has been specially designed and analyzed for crane rails. It can also be successfully used for railway tracks. It is very strong, reliable, and has compact dimensions. It can be used for the construction of tracks of any type, regardless of the size of wheel sets and the

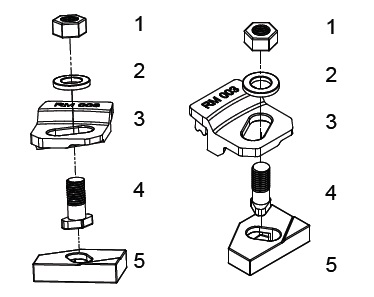

Nut M24 DIN 934 Washer M24 DIN 7889 Upper element of the mount with elastomeric attachment: short – used in conjunction with a flexible rubber pad long – without a rubber pad Special bolt M24 Lower element to be welded

Installation of clips

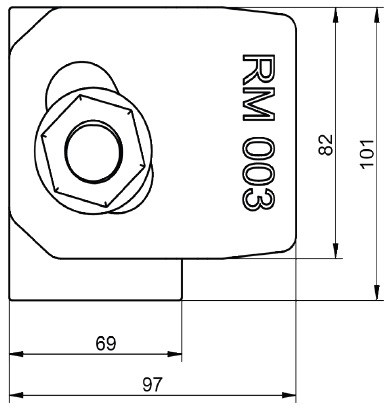

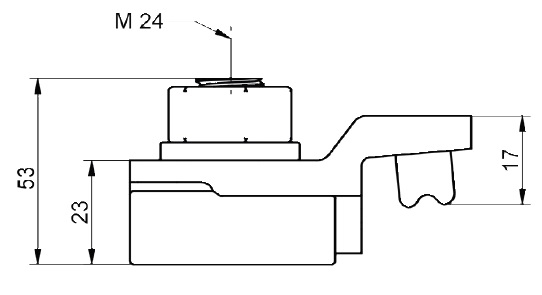

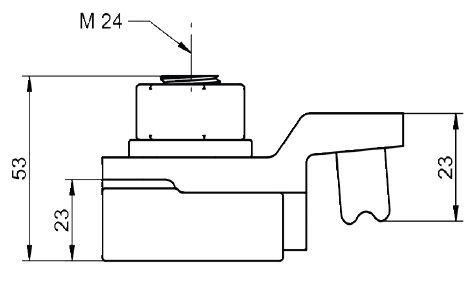

RM 003	RM 003P

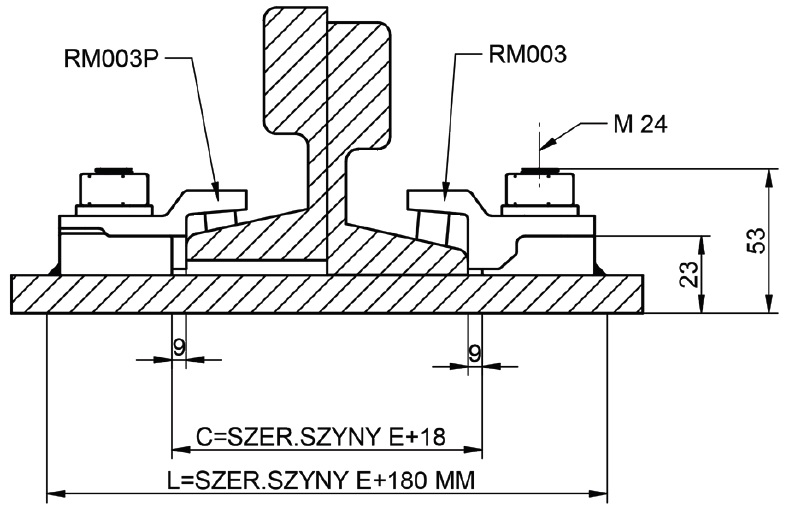

RM003 – clip with long attachment, Used without the flexible pad	RM003P – clip with short elastomer attachment – used in conjunction with a flexible rubber pad
Tolerance ± 2 mm

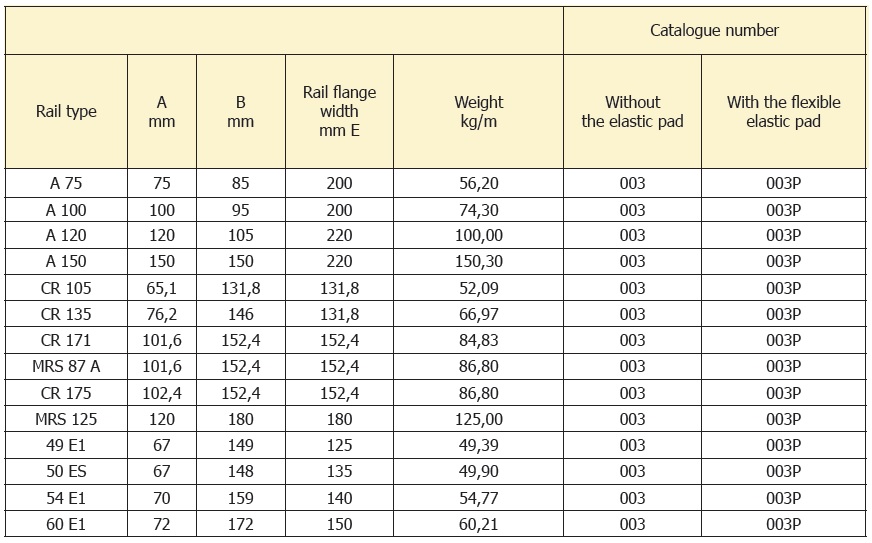

Clamps can be used with different types of rails than those in the table. Full offer of every type of rail is available on request.
Products and technical info can be changed without notice

Installation manual:

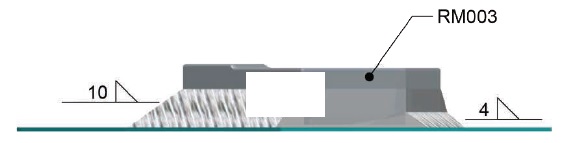

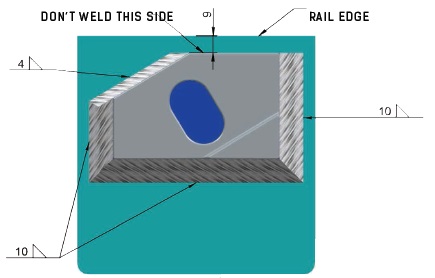

Base of the clamp is made with weldable steel. Connection can be made using MMA welding with low hydrogen electrodes such as AWS E7018 or E7028 or using MIG welding. The fillet weld should have 4mm; 10mm around the base of the clip with the exception of the side closest and parallel to the rail.

Base parameters:

Flexible mounting of rails with or without rubber cushioning; the use of a flexible rubber pad additionally reduces noise and dampens railway vibrations. System consists of two cooperating elements enabling easy longitudinal adjustment;
Two parts of the clamp are connected by a bolt and a flange nut.
Elastomeric overlay on the top clamp increases the tolerance of the rail support structure, reduces stress, and allows for better rail fastening
Welding the bottom part of the clamp facilitates installation onto a steel beam or anchor plates (without the need for drilling).
most demanding conditions.

Rubber pad is made with a synthetic elastomer.
The middle layer has additional steel sheet reinforcement.
Allows to its grooved surface, the Pad underlay provides excellent, even adhesion to the rail surface. It is completely resistant to water, oil, ozone, grease, and UV.
It is used in the construction of tracks for cranes and other equipment moving on rails.
It has a high degree of shape recovery thus extending their service life.
