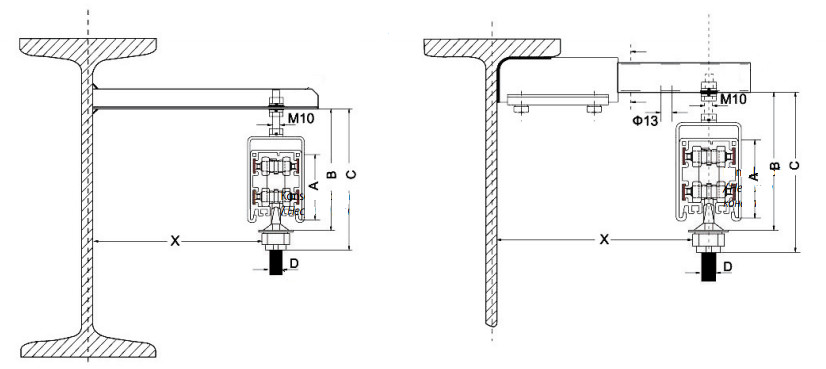

Method of mounting
Temperature range Mechanical properties
- Standard enclosure −20°C do +70°C - Cross-breaking strength 75N/mm2 ± 10%
- Enclosure is resistant to high temperatures −20°C do +115°C - Tensile strength 40N/mm2 ± 10%
- Enclosure is resistant to low temperatures −40°C do +80°C
Electrical properties Flammability
- Max. current 240A - Klass B1, with the absence of the elements
- Maximal voltage 690V that cause inflammation, self-extinguishing
- Insulation strength 30−40KV/MM
- Resistance 5 × 1015 Om × cm
- Surface resistance 1013 Om × cm
- Resistance to voltage drops CTI600−2.7
