Mount the crane cabin at the top of the shock absorbers. The entrance area is a one-piece construction with a cabin.
Dimensions:
width 1600 mm
height 2300 mm
top depth 3135 mm
Metal construction with insulated insulated walls, filled with non-flammable insulating material.
Electrical installation is distributed using cables with high fire resistance, halogens-free.
Coating with high-quality anti-corrosion paint. Color classification: 1028 RAL
Options:
Fastening the crane cabin in the upper part on the plates. The extended entrance platform is a one-piece construction with a cabin.
Dimensions:
width 1700 mm
height 2300 mm
top depth 4150 mm
Metal construction with insulated insulated walls, filled with non-flammable insulating material.
Electrical installation is distributed using cables with high fire resistance, halogens-free.
Coating with high-quality anti-corrosion paint. Color: outside 1028 RAL; inside 9002 RAL.
Options:

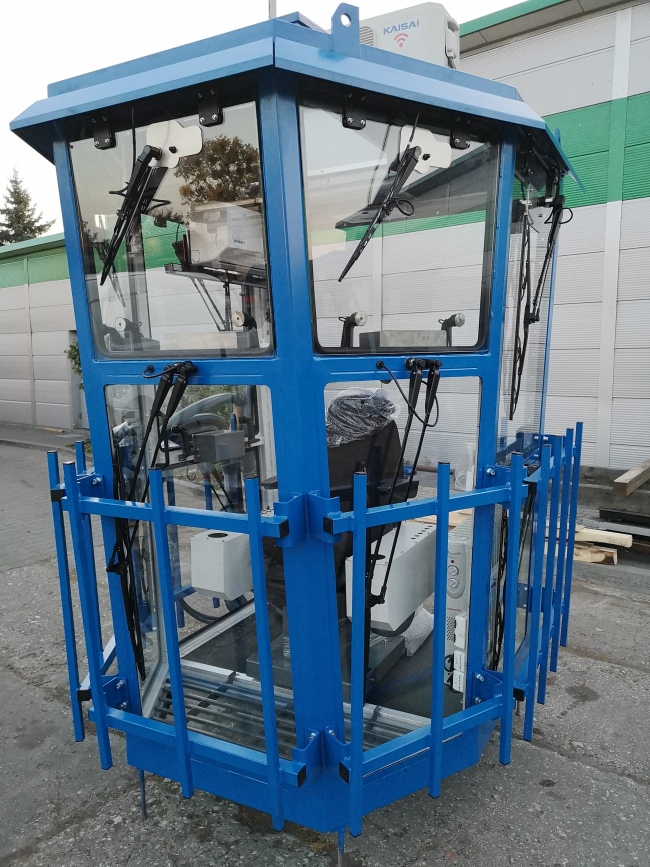

Mount the crane cab at the rear around the perimeter. The cabin is completely oblique. The walls are made entirely of glass. All windows have wipers and washers.
Dimensions:
width 1600 mm
height 2200 mm
top depth 1672 mm
Metal construction with insulated insulated walls, profiles, filled with non-flammable insulation material.
Electrical installation is distributed using cables with high fire resistance, halogens-free.
Coating with high-quality anti-corrosion paint. Color: 5017 RAL.
Options:
